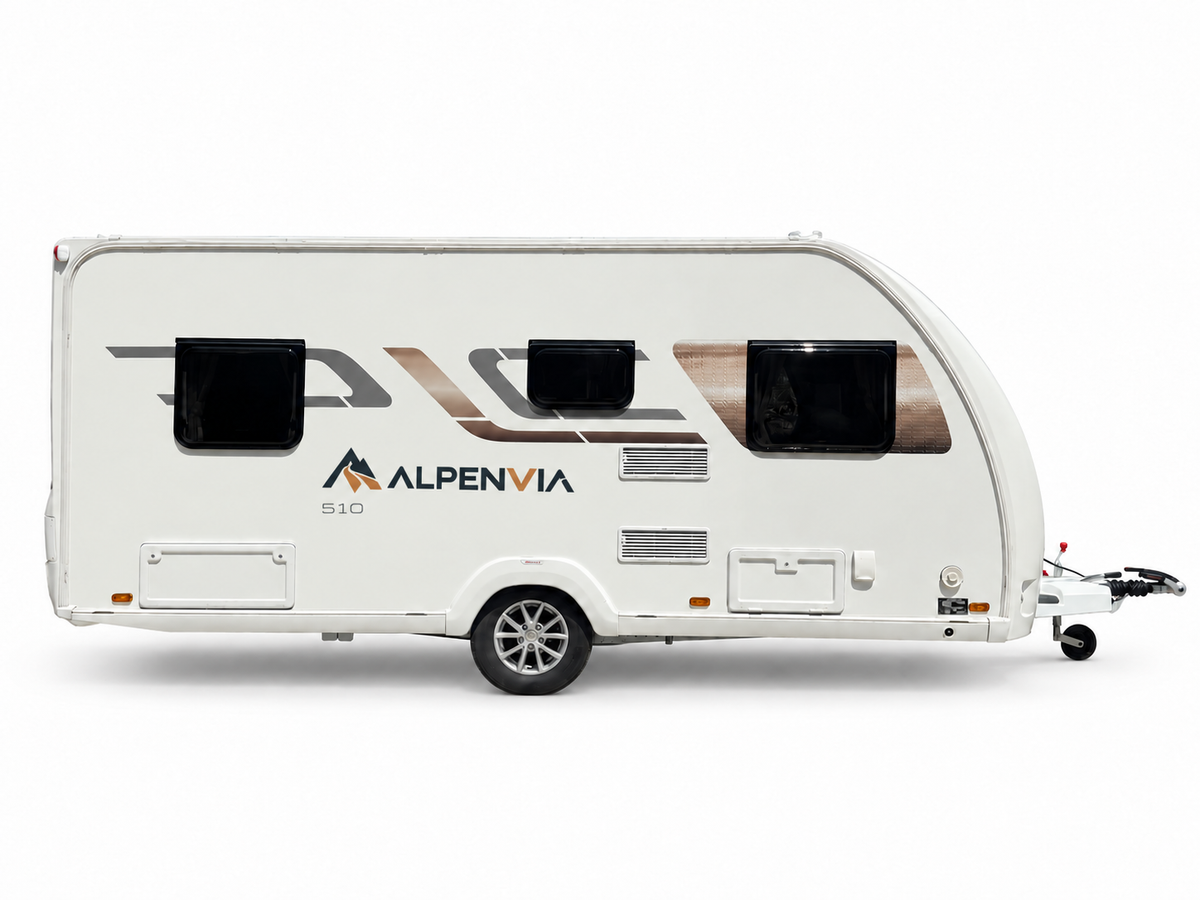

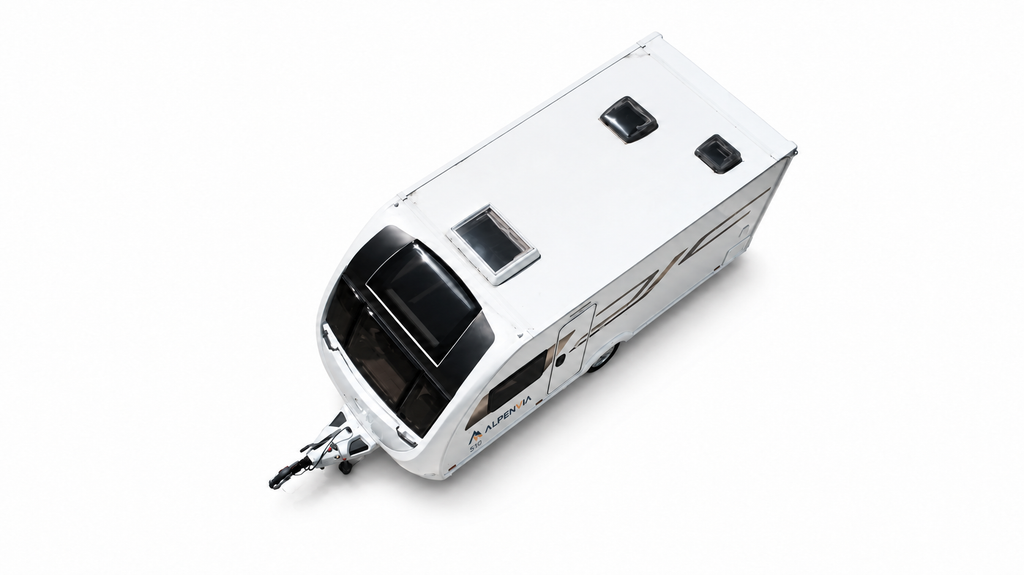

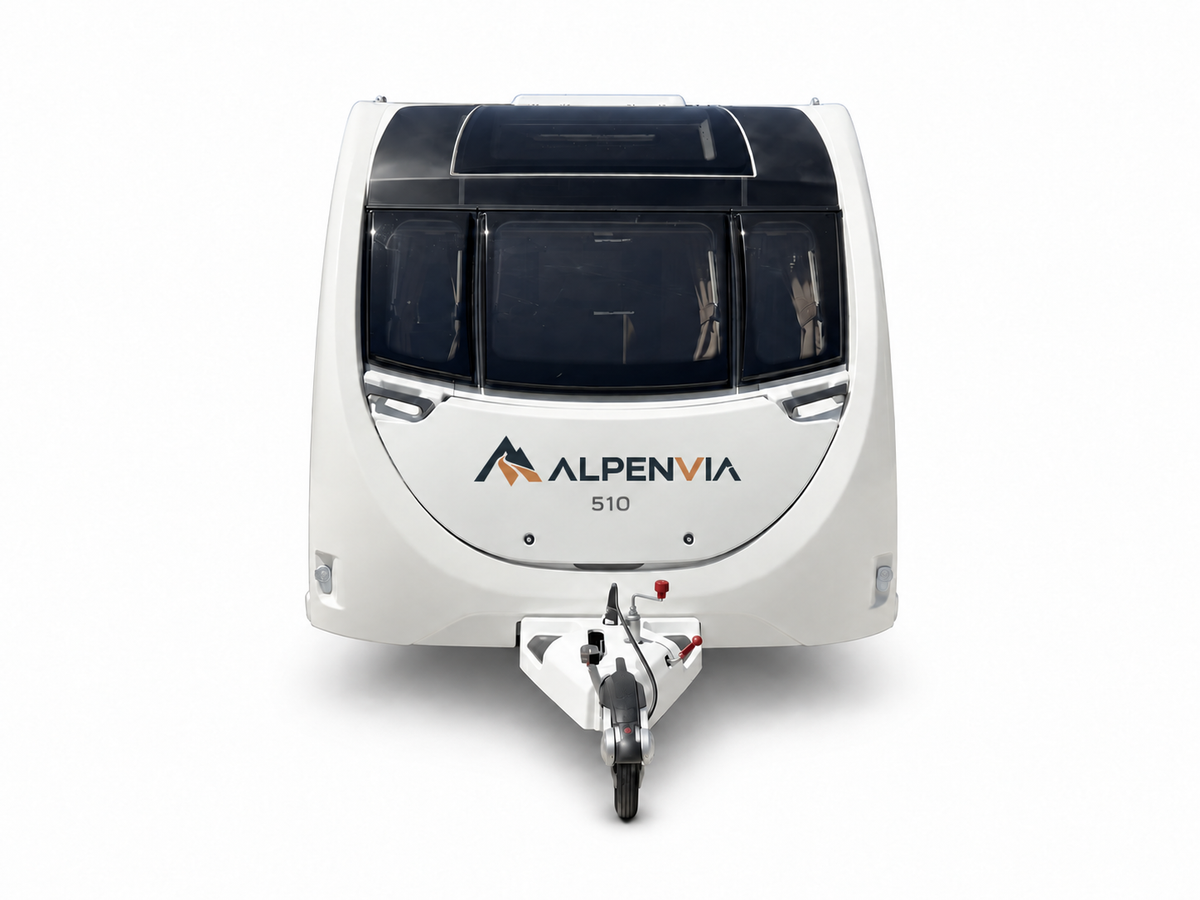

ALPENVIA 510
$59,000.00
The ALPENVIA 510 combines a comfortable rear fixed bed with a convertible front lounge, a complete kitchen and a private bathroom. Built on a single-axle AL-KO chassis, it also features a 600W solar system, a 400Ah lithium battery and generous interior storage for extended trips.
ALPENVIA 510
Basic Technical Specifications
British-style 510 caravan: dimensions, layout, equipment, water system, 12 V electrical system and optional equipment.
Vehicle Model
RHL9027XLJ
1–5
Sleeping Capacity
Single
Axle
600 W
Solar Power
400 Ah
Lithium Battery
Vehicle & Chassis
Vehicle ModelRHL9027XLJ
ChassisAL-KO
Braking SystemOverrun / inertia brake
Axle ConfigurationSingle axle
Chassis Load Rating
1.3 metric tons
Curb / Gross Weight
1,250 / 1,300 kg
Rated Load
50 kg
Trailer Wiring ConnectorEuropean 13-pin harness
Tire Specification195R14C 8PR
Spare Tire1 included
Recommended Maximum Speed
100 km/h
Occupancy While TowingNo passengers permitted
Dimensions & Construction
Overall Dimensions (L × W × H)
6,650 × 2,200 × 2,580 mm
Width with Awning
2,260 mm
Height with Roof A/C
2,700 mm
Body Dimensions (L × W × H)
5,100 × 2,100 × 1,950 (1,980) mm
Exterior SkinAluminum with selected molded fiberglass sections
FrameAluminum frame
Body StructureSandwich-panel construction
Floor Plan & Sleeping
Sleeping Capacity1–5 people
Rear AreaFixed bed and bathroom

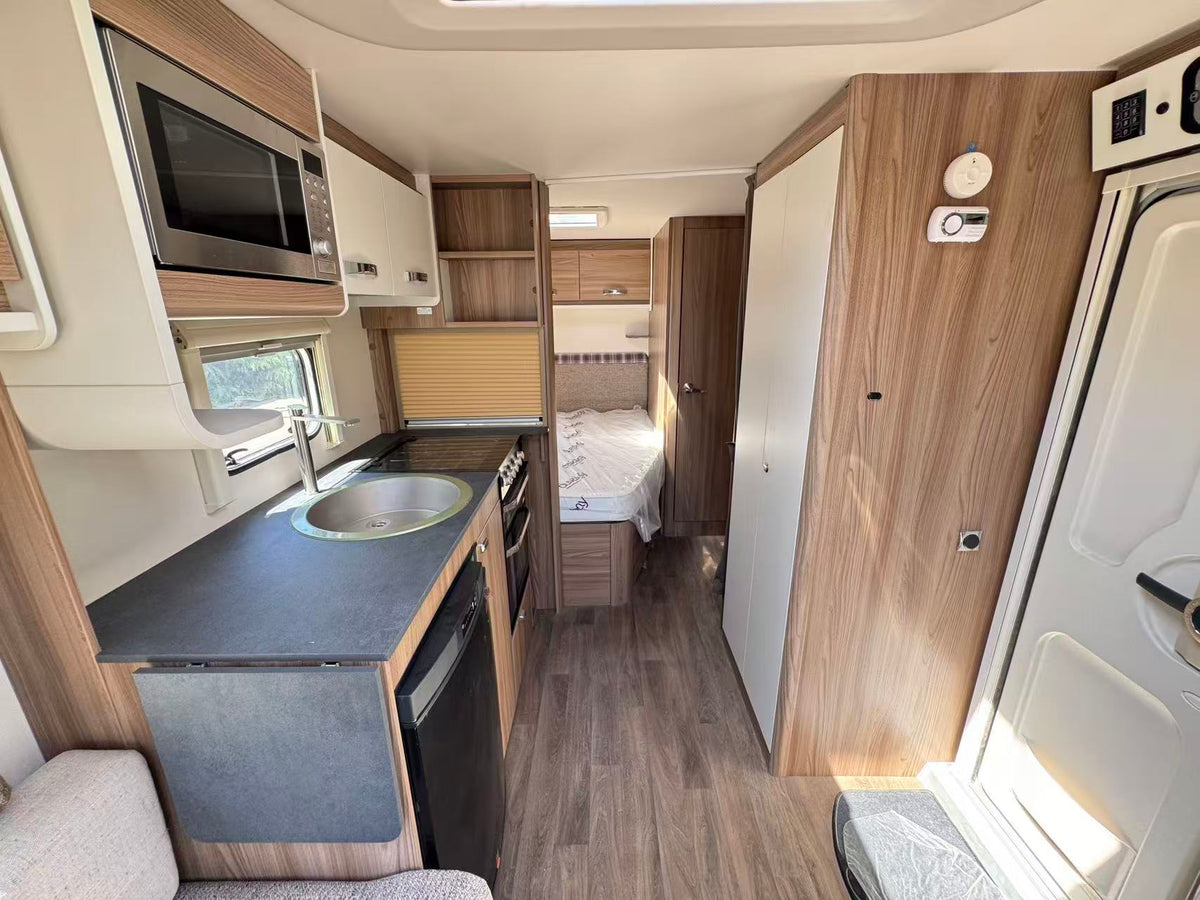

Center AreaKitchen and wardrobe

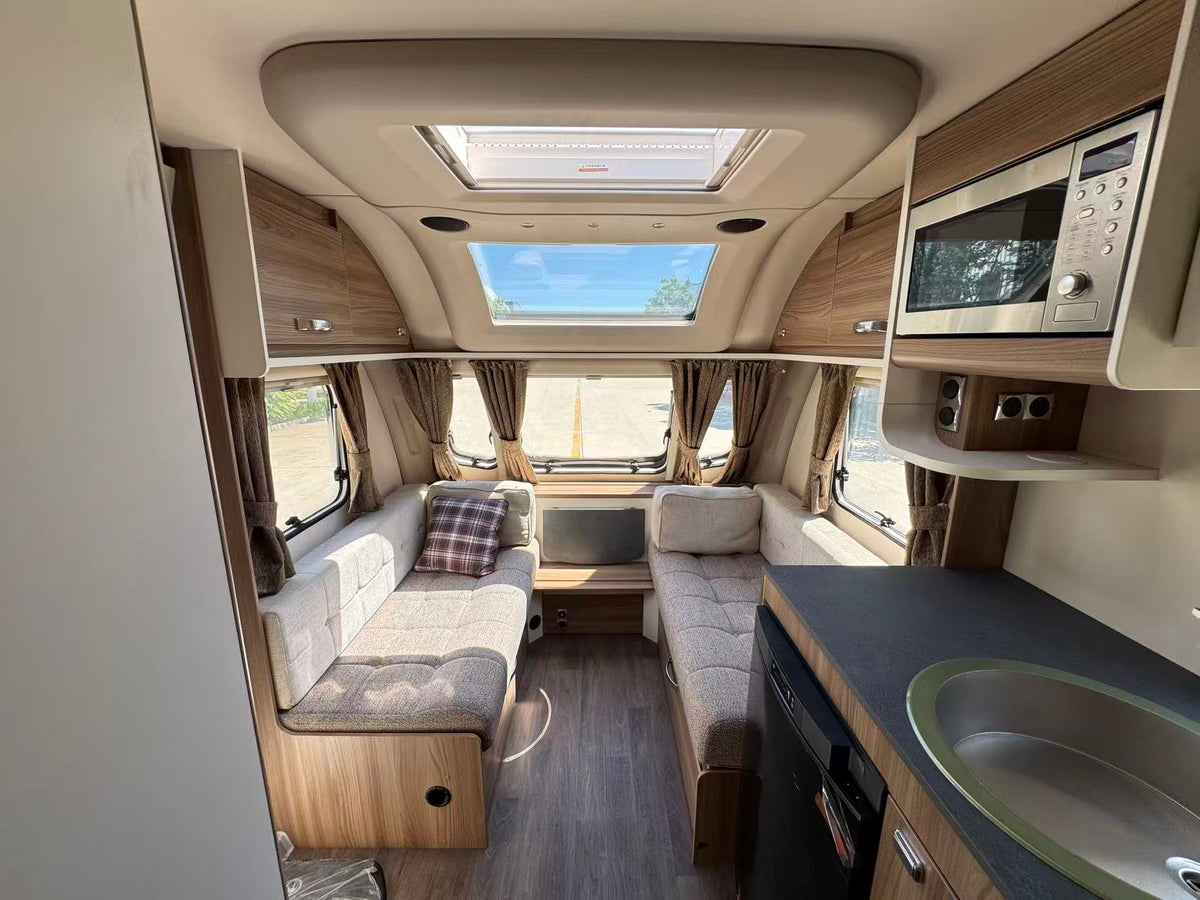

Front AreaLounge with twin-bed or large-bed configuration
Front Lounge Seats
1,300 × 700 mm × 2
Converted Front Bed
2,100 × 1,300 mm
Rear Fixed Bed
1,900 × 1,300 mm

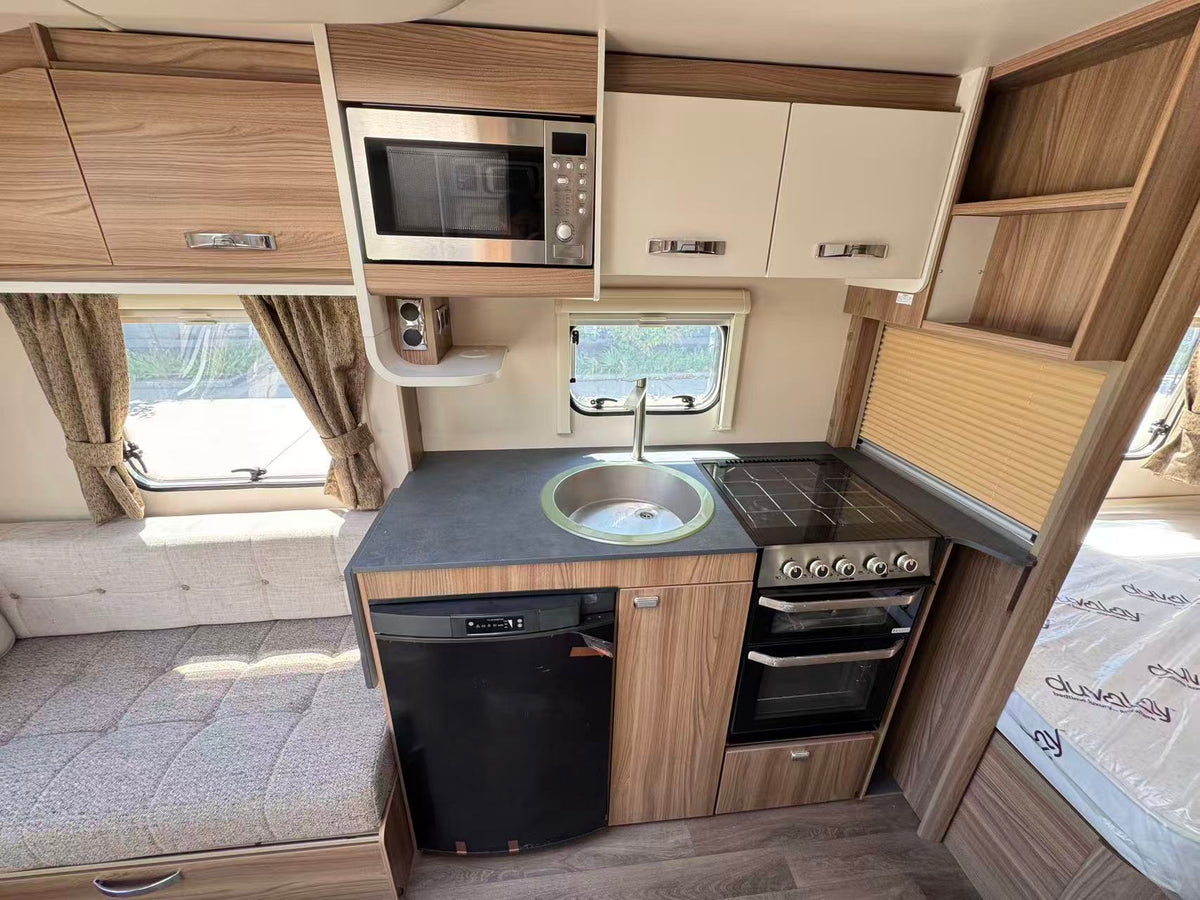

Comfort & Appliances
Control PanelCentral water, electrical and fuel-system control panel
Audio SystemRadio/cassette recorder with 4 speakers
Air ConditioningDometic roof-mounted air conditioner / Xiaomi high-capacity 1 HP-class air conditioner
Heating & Hot WaterBelief diesel/electric combination heating and hot-water unit with a 25 L diesel tank
RefrigeratorFROSTY 80–120 L refrigerator/freezer
CooktopGropa electric ceramic cooktop
MicrowaveIncluded
SinkRound sink with cover
FaucetPull-out faucet
ToiletThetford swivel toilet
BathroomShower fixture and storage cabinet
Other EquipmentAwning, entry step and stabilizer jacks
VentilationReversible ventilation fan
SafetySmoke alarm
Windows, Doors & Storage
WindowsDouble-layer, vacuum, shatter-resistant acrylic windows
Window AccessoriesInsect screens and privacy sunshades
Skylights2
Entry DoorEuropean-style entry door
Door AccessoriesTrash bin and concealed insect screen door
Rear-Right StorageLarge vertical exterior storage hatch
Front-Side StorageSingle storage compartment
Front StorageLarge transverse compartment with a top-hinged door
Water System
Freshwater Tank
120 L
Freshwater Tank DesignThick-walled anti-slosh tank; underfloor mounted; for use in above-freezing conditions
Gray-Water Tank
95 L
Black-Water Tank
18 L
Black-Water SystemThetford toilet waste tank
Water ConnectionsWater-fill and drain ports included
12V Electrical System
Solar Power600 W
Inverter / ChargerMaili 3,000 W integrated inverter/charger
Battery400 Ah lithium battery, approximately 5.12 kWh
Cold-Weather Battery FeatureLow-temperature heating
Shore PowerCharging inlet and 220 V output
Switches & OutletsIncluded
Interior LightingCeiling lights, ambient light strip, bedside lights and auxiliary lights
