ALPENVIA 460
$59,000.00
The ALPENVIA 460 is a compact, family-friendly travel trailer featuring rear bunk beds, a convertible front lounge, a fully equipped kitchen and a private bathroom. Its single-axle AL-KO chassis, 600W solar system and 400Ah lithium battery make it ideal for family camping and off-grid adventures.
ALPENVIA 460
Basic Technical Specifications
British-style 460 caravan: dimensions, layout, equipment, water system, 12 V electrical system and optional equipment.
Vehicle Model
RHL9026XLJ
1–5
Sleeping Capacity
Single
Axle
600 W
Solar Power
400 Ah
Lithium Battery
Vehicle & Chassis
Vehicle ModelRHL9026XLJ
ChassisAL-KO
Braking SystemOverrun / inertia brake
Axle ConfigurationSingle axle
Chassis Load Rating
1.8 metric tons
Curb / Gross Weight
1,450 / 1,500 kg
Rated Load
50 / 350 kg
Trailer Wiring ConnectorEuropean 13-pin harness
Tire Specification195R14C 8PR
Spare Tire1 included
Recommended Maximum Speed
100 km/h
Occupancy While TowingNo passengers permitted
Dimensions & Construction
Overall Dimensions (L × W × H)
6,230 × 2,250 × 2,570 mm
Height with Roof A/C
2,700 mm
Body Dimensions (L × W × H)
4,600 × 2,100 × 1,950 (1,980) mm
Exterior SkinAluminum with selected molded fiberglass sections
FrameAluminum frame
Body StructureSandwich-panel construction

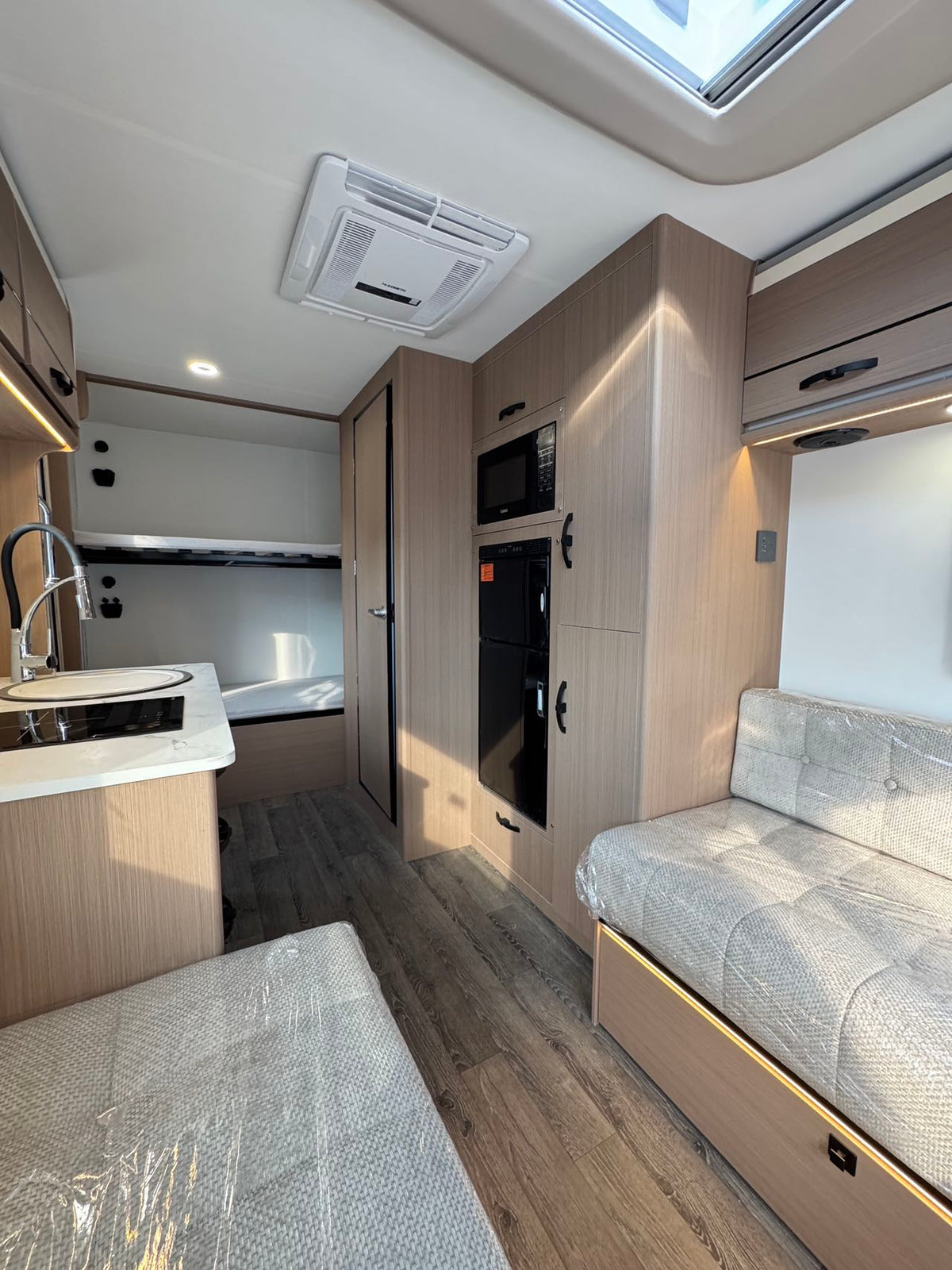

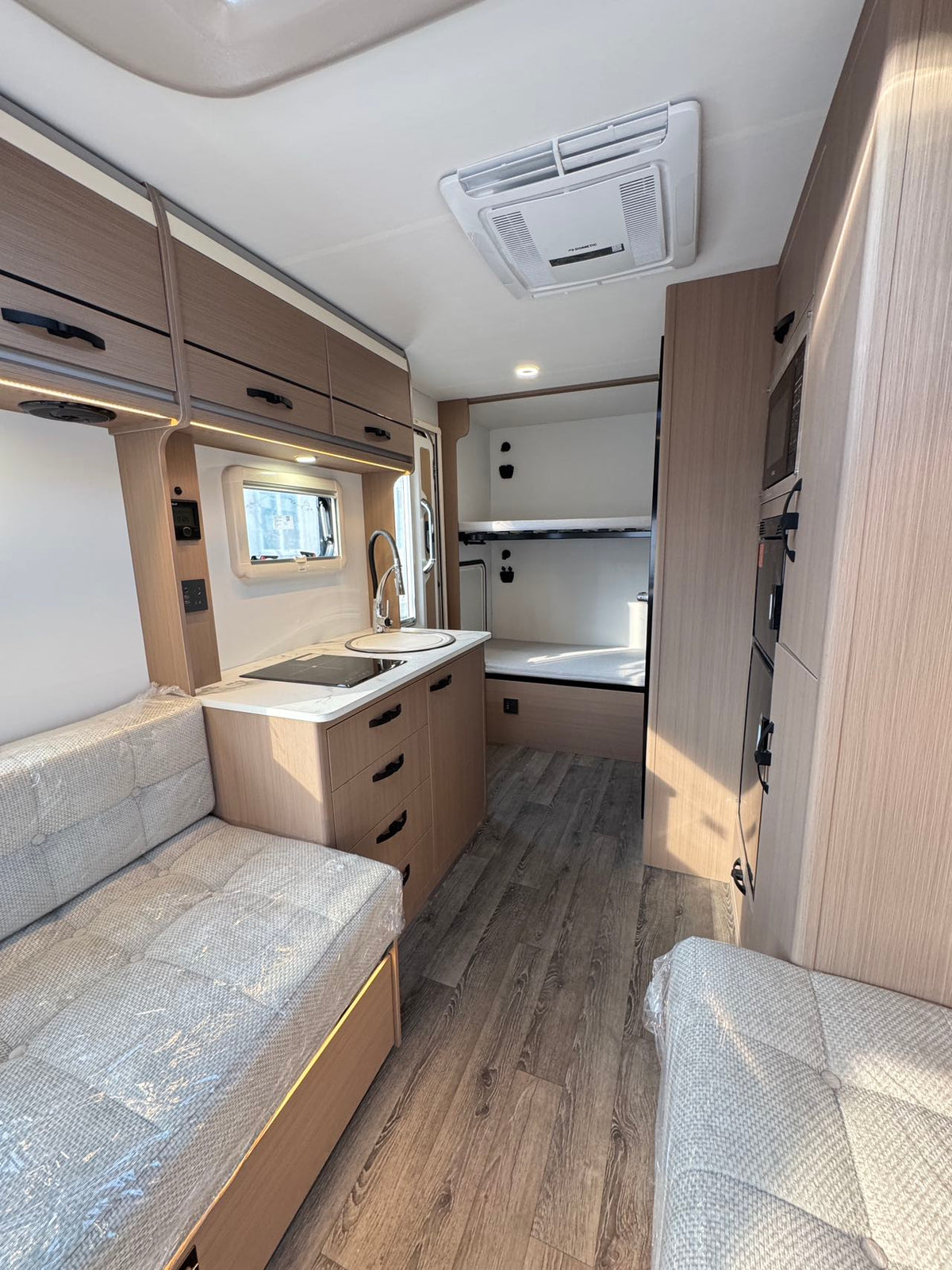

Floor Plan & Sleeping
Sleeping Capacity1–5 people
Rear AreaRear bunk beds; the area can also be used for storage
Center AreaKitchen and bathroom

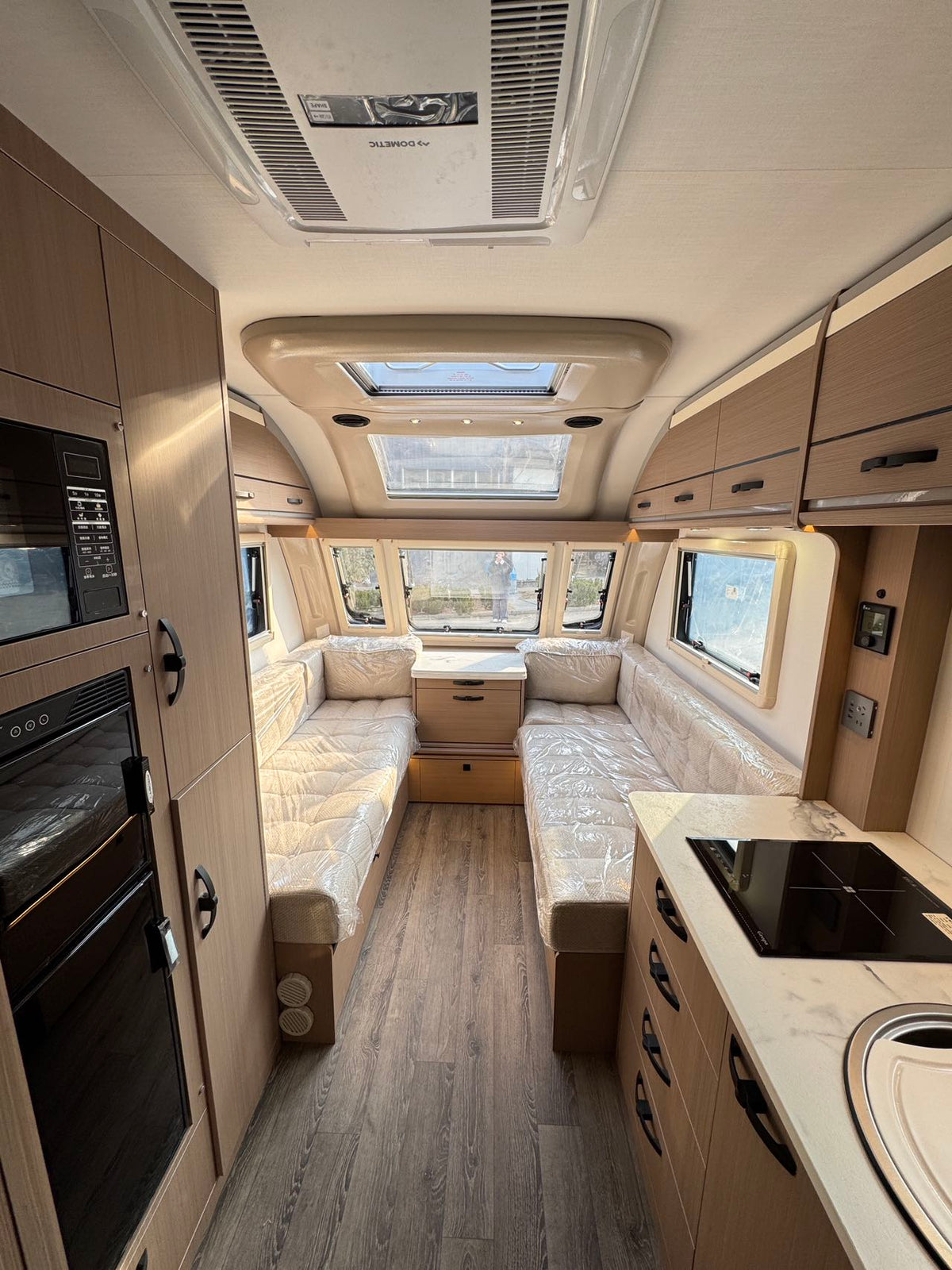

Front AreaLounge with twin-bed or large-bed configuration
Front Lounge Seats
1,800 × 700 mm × 2
Converted Front Bed
2,100 × 1,800 mm
Converted-Bed NoteExcluding the tabletop
Rear Bunk Beds
2,100 × 800 mm × 2
Comfort & Appliances
Control PanelCentral water, electrical and fuel-system control panel
Audio SystemRadio/cassette recorder with 4 speakers
Air ConditioningDometic roof-mounted air conditioner
Heating & Hot WaterBelief diesel/electric combination heating and hot-water unit
RefrigeratorFROSTY 120 L refrigerator/freezer
CooktopGupai (古牌) electric ceramic cooktop
CooktopGropa electric ceramic cooktop
MicrowaveIncluded
SinkRound sink with cover
FaucetPull-out faucet
ToiletThetford swivel toilet
BathroomShower fixture and storage cabinet
Other EquipmentInflatable tent, entry step and stabilizer jacks
VentilationReversible ventilation fan
SafetySmoke alarm
Windows, Doors & Storage
WindowsDouble-layer, vacuum, shatter-resistant acrylic windows
Window AccessoriesInsect screens and privacy sunshades
Skylights2
Entry DoorEuropean-style entry door
Door AccessoriesTrash bin and concealed insect screen door
Rear-Right StorageLarge vertical exterior storage hatch
Front-Side StorageSingle storage compartment
Front StorageLarge transverse compartment with a top-hinged door
Water System
System TypeDual freshwater tank system
Freshwater Tank 1
120 L
Freshwater Tank 1 DesignThick-walled anti-slosh tank; underfloor mounted; for use in above-freezing conditions
Freshwater Tank 2
45 L
Freshwater Tank 2 LocationInterior mounted; for use in below-freezing conditions
Gray-Water Tank
95 L
Black-Water Tank
18 L
Black-Water SystemThetford toilet waste tank
Water ConnectionsWater-fill and drain ports included
12V Electrical System
Solar Power600 W
Inverter / ChargerMaili (迈力) 3,000 W integrated inverter/charger
Inverter / ChargerMaili 3,000 W integrated inverter/charger
Battery400 Ah lithium battery, approximately 5.12 kWh
Cold-Weather Battery FeatureLow-temperature heating
Shore PowerCharging inlet and 220 V output
Switches & OutletsIncluded
Exterior LightingExterior body-outline light strip
Interior LightingCeiling lights, ambient light strip, bedside lights and auxiliary lights
