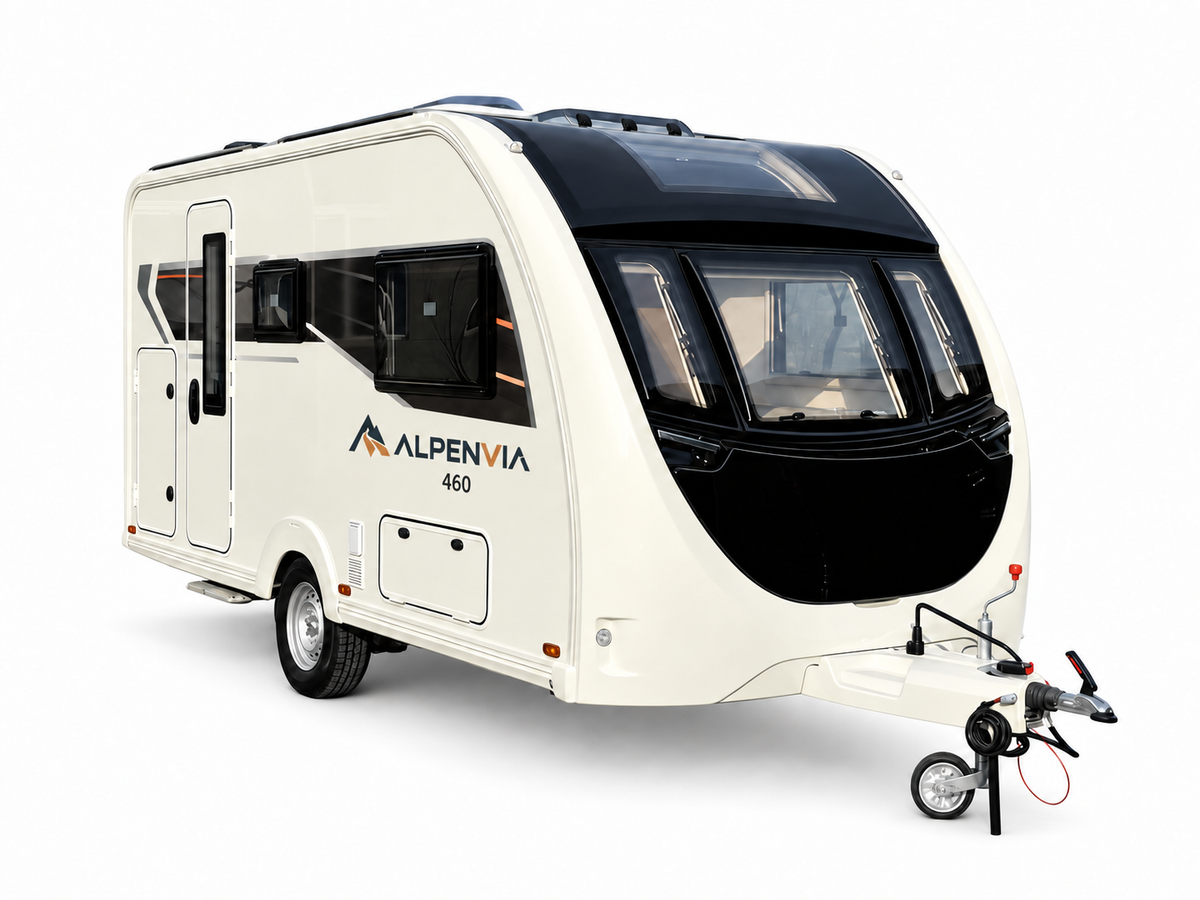

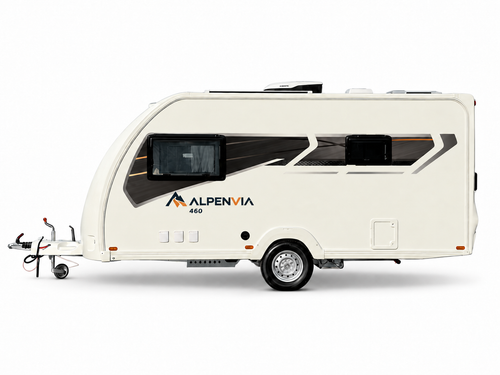

Agile family tourer
AHNATAL
460
A compact, easy-towing layout with twin bunks, a convertible front lounge and complete onboard systems.
- Overall length
- 6,230 mm
- Mass
- 1,450 / 1,500 kg
- Chassis
- Single axle · 1.8 t
- Sleep
- Up to 5
Purpose-built touring caravans
Engineered for four-season freedom
AHNATAL TOURING CARAVANS
Designed for the road.
Built for the way you live.
Thoughtful layouts, four-season systems and dependable AL-KO foundations— everything you need to make the horizon feel like home.
1–5Berths
600 WSolar power
400 AhLithium battery
3,000 WInverter / charger
FIND YOUR CARAVAN
Three sizes. One standard of adventure.
From an agile family tourer to a spacious twin-axle flagship, every AHNATAL is designed around real journeys, generous storage and confident off-grid living.
Agile family tourer
$59,000.00

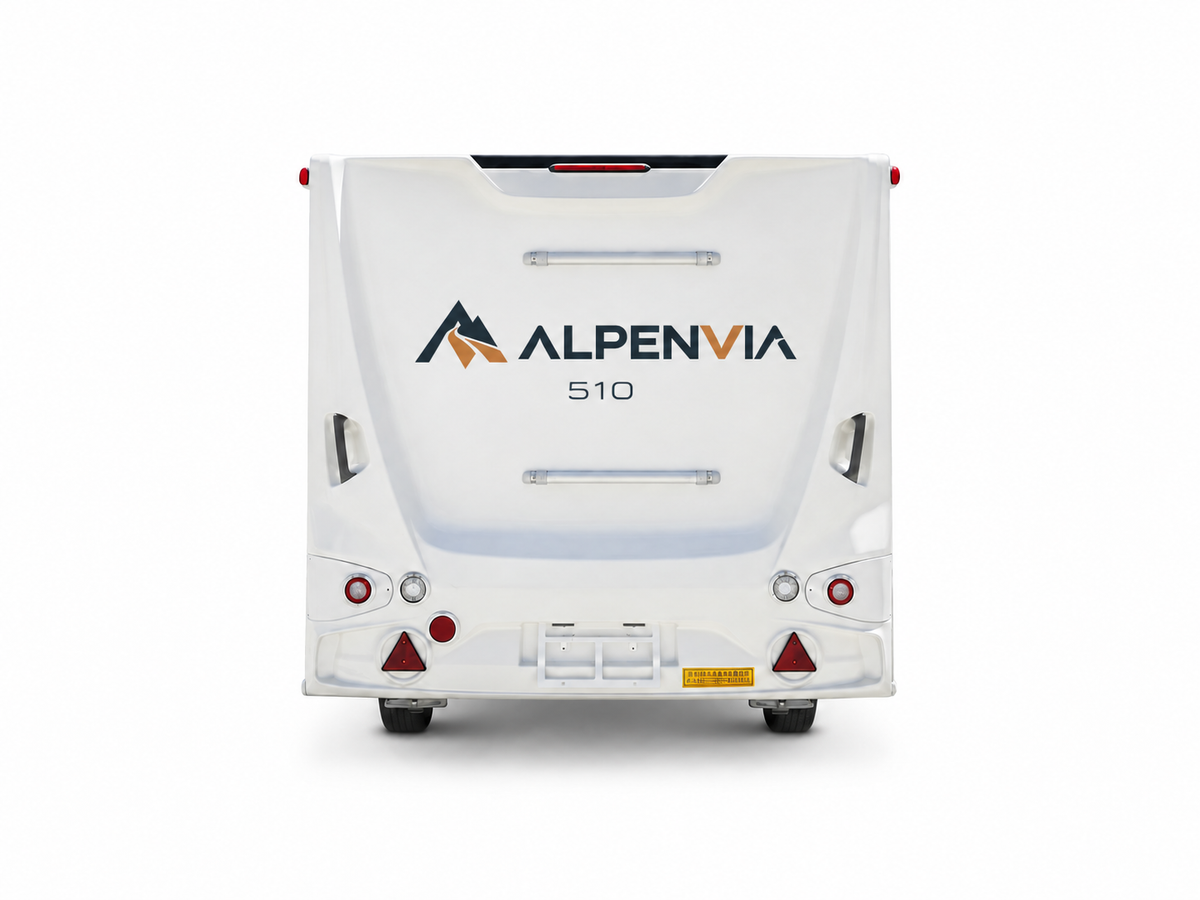

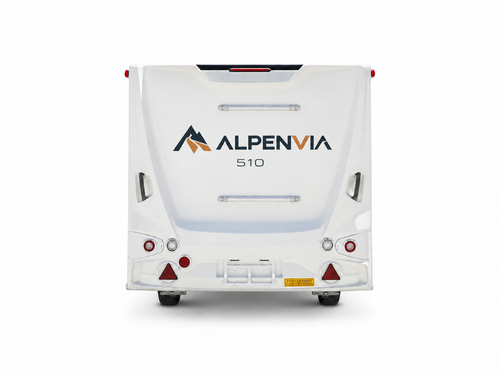

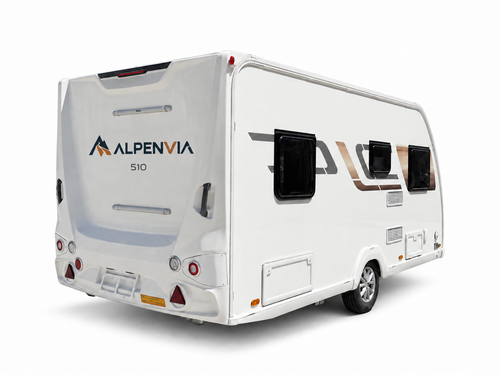

The all-rounder
AHNATAL
510
A beautifully balanced tourer with a permanent rear bed, full washroom and a generous front lounge.
- Overall length
- 6,650 mm
- Mass
- 1,250 / 1,300 kg
- Chassis
- Single axle · 1.3 t
- Sleep
- Up to 5

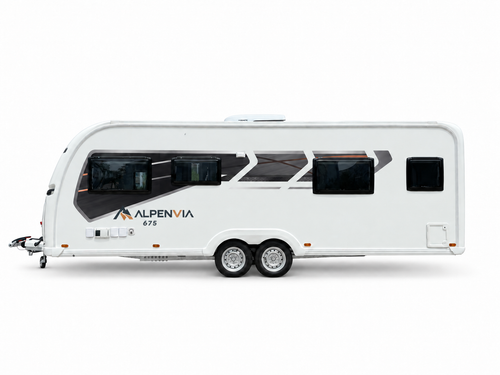

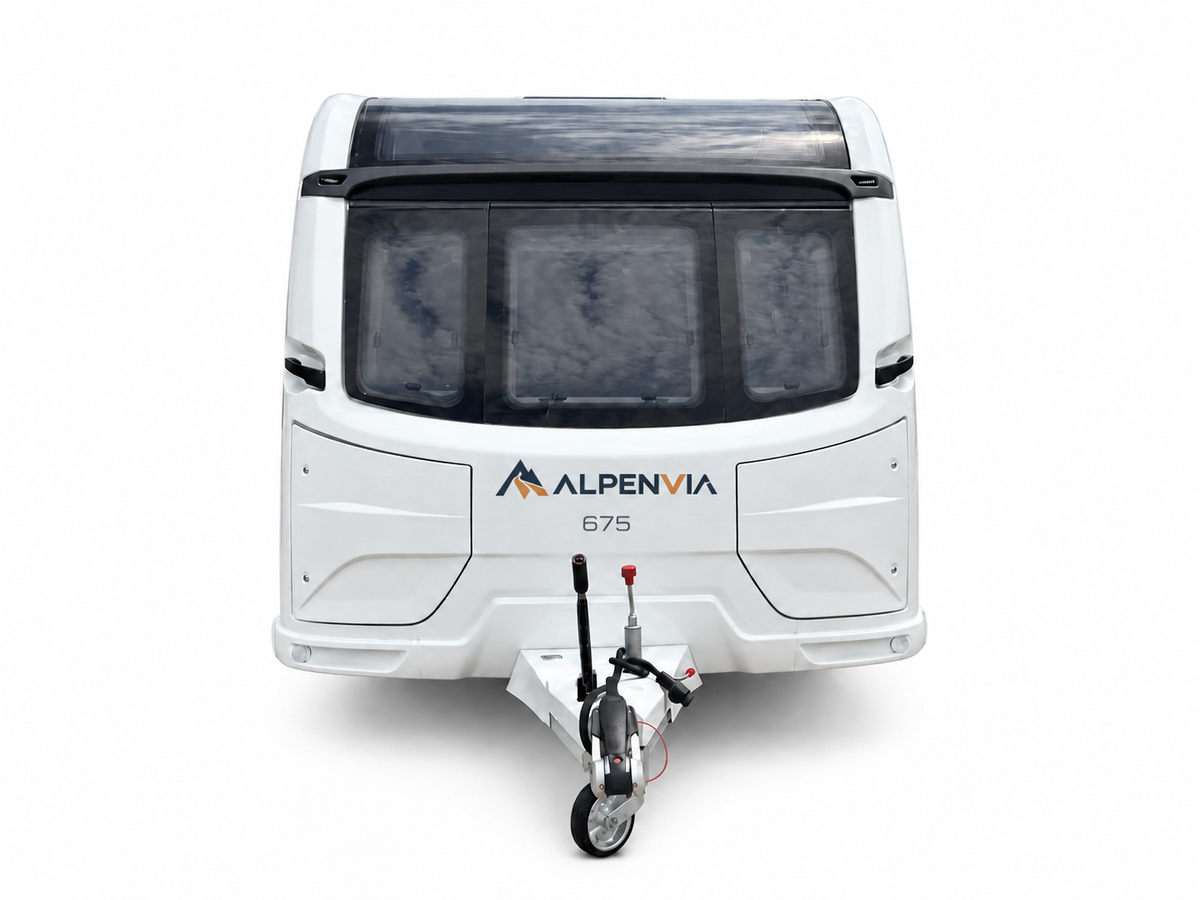

Twin-axle flagship
AHNATAL
675
Our most spacious family caravan, pairing twin-axle stability with expansive living and sleeping zones.
- Overall length
- 7,875 mm
- Mass
- 2,100 / 2,200 kg
- Chassis
- Twin axle · 3.0 t
- Sleep
- Up to 5
READY BEYOND THE CAMPSITE
Comfort, power and independence—built in.
Core systems are selected for long-distance touring, changing weather and more time away from hookups.
01
Serious off-grid power
600 W solar, a 400 Ah lithium battery with low-temperature heating, and a 3,000 W inverter / charger.
02
Four-season comfort
Roof-mounted air conditioning plus an integrated diesel heating and hot-water system for year-round touring.
03
Independent water system
Insulated fresh-water storage, 95 L grey-water capacity and an 18 L Thetford cassette toilet tank.
04
Complete living space
Equipped kitchen, private washroom, flexible sleeping areas and intelligently planned interior storage.
COMPARE THE RANGE
Choose your ideal footprint.
All dimensions and masses are based on the supplied technical specification sheets. Final production dimensions may vary.
| Specification | 460 | 510 | 675 |
|---|---|---|---|
| Model code | RHL9026XLJ | RHL9027XLJ | RHL9028XLJ |
| Overall dimensions | 6,230 × 2,250 × 2,570 mm | 6,650 × 2,200 × 2,580 mm | 7,875 × 2,250 × 2,590 mm |
| Body dimensions | 4,600 × 2,100 × 1,950 mm | 5,100 × 2,100 × 1,950 mm | 6,750 × 2,100 × 1,950 mm |
| Unladen / gross mass | 1,450 / 1,500 kg | 1,250 / 1,300 kg | 2,100 / 2,200 kg |
| Axle configuration | Single axle | Single axle | Twin axle |
| Sleeping layout | Front lounge + twin rear bunks | Front lounge + fixed rear bed | Front lounge + fixed rear bed |
| Main bed size | 2,100 × 1,800 mm | 1,900 × 1,300 mm | 2,000 × 1,500 mm |
| Fresh water | 120 L + 45 L | 120 L | 120 L + 45 L |
| Tyres | 195R14C 8PR + spare | 195R14C 8PR + spare | 195R14C 8PR + spare |
| Recommended max. towing speed | 100 km/h | 100 km/h | 100 km/h |
Kitchen & washroom +
FROSTY refrigerator, electric ceramic hob, microwave, covered round sink and pull-out tap.
THETFORD swivel cassette toilet, shower and dedicated bathroom storage.
Body & storage +
Aluminium exterior skin, aluminium frame and bonded sandwich-panel body construction.
Double-glazed acrylic windows with insect screens and privacy blinds, two rooflights and multiple exterior storage compartments.
Available options +
Options vary by model and may include an exterior slide-out cooker, exterior water connection, washing machine, AL-KO AKS stabiliser and AL-KO ATC trailer control.
Selected models can be specified with a Truma D6 system or a 48 V package with a 6,000 W inverter and 10 kWh lithium battery.
START YOUR NEXT CHAPTER
Your route is waiting.
Explore the range, compare layouts and find the AHNATAL caravan built for your kind of journey.
